Find more detailed breakdown of the parameters and a comparison table in our selection guide .

Consult MLX90614 datasheet for the latest information.

All accuracy specifications apply under settled isothermal conditions only. Furthermore, the accuracy is only valid if the object fills the FOV of the sensor completely.

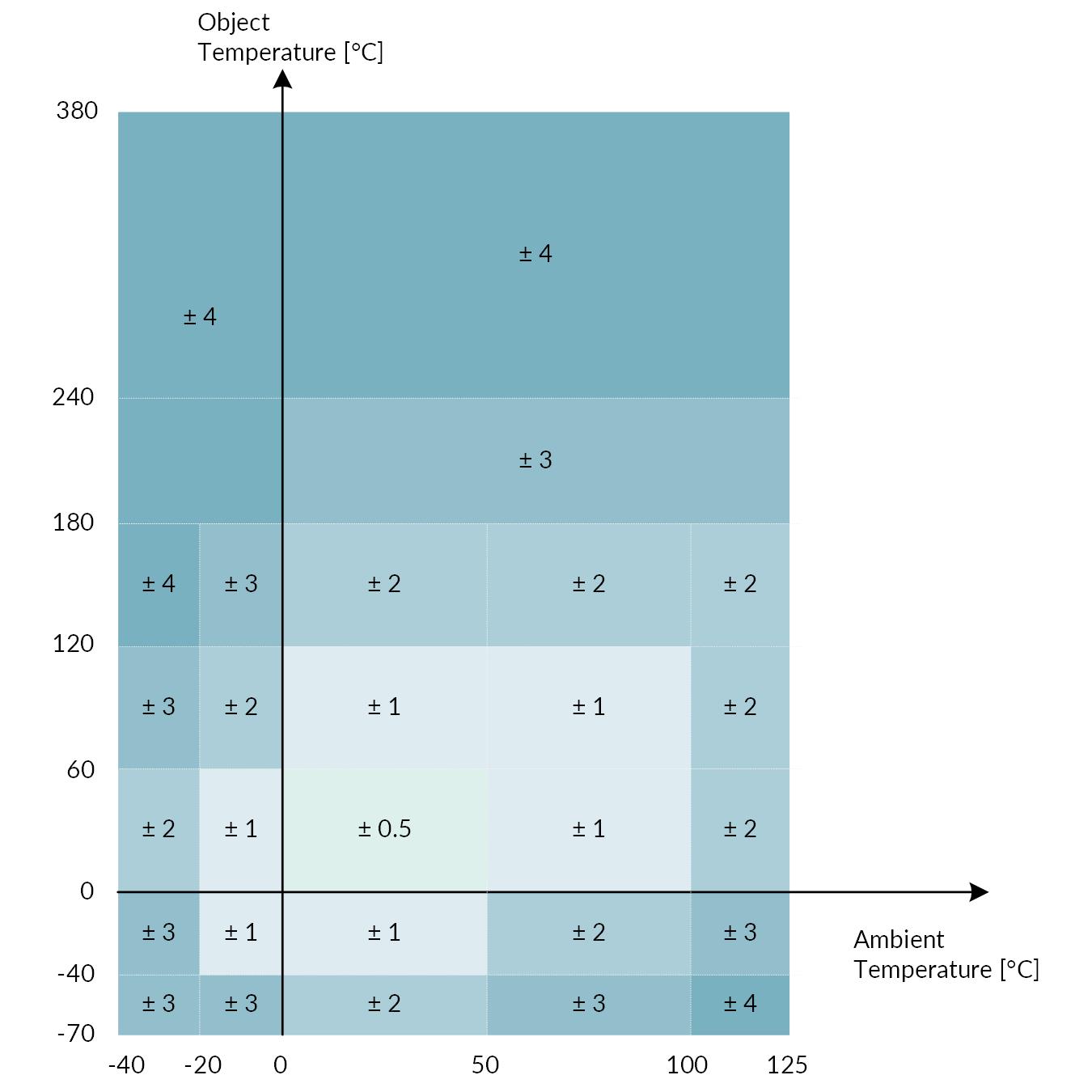

Standard accuracy of MLX90614 (Ta, To) except for xCK type:

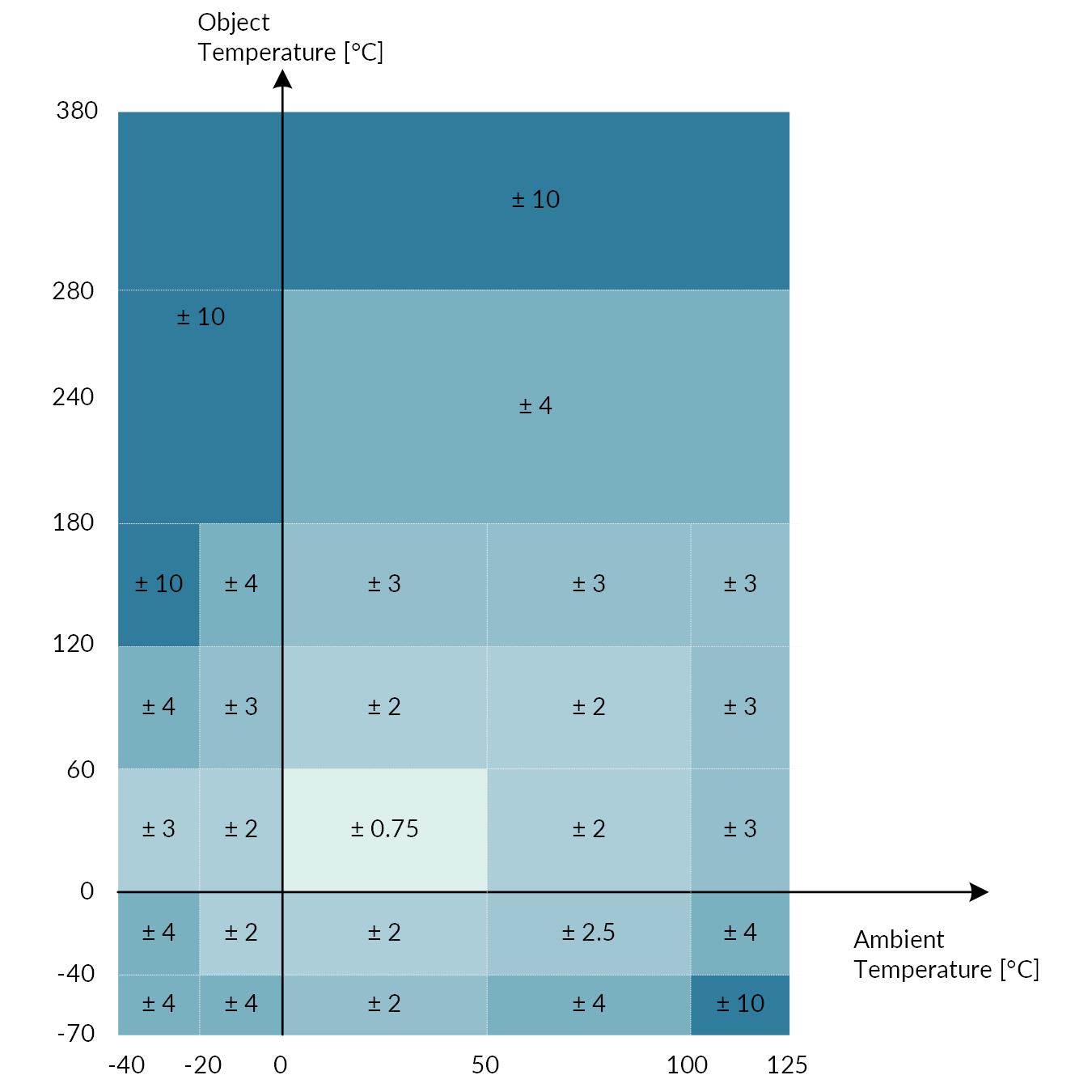

Accuracy of MLX90614xCK:

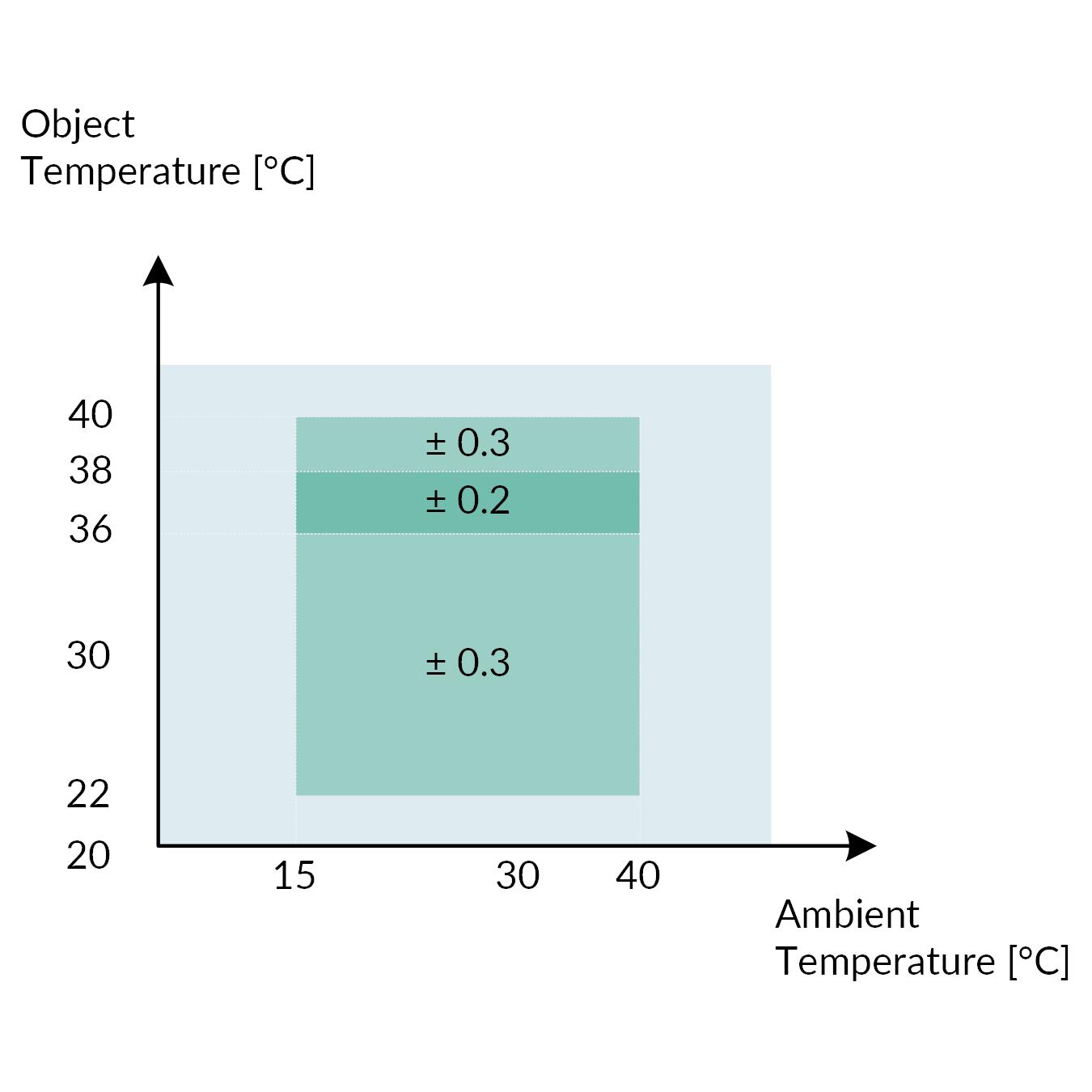

MLX90614 Medical accuracy:

A version of the MLX90614 with accuracy suited for medical applications is available. The accuracy in the range Ta 16°C…40°C and To 22°C…40°C is shown in diagram below. The accuracy for the rest of the temperature ranges is the same as in previous diagram. Medical accuracy specification is only available for the MLX90614Dxx versions.

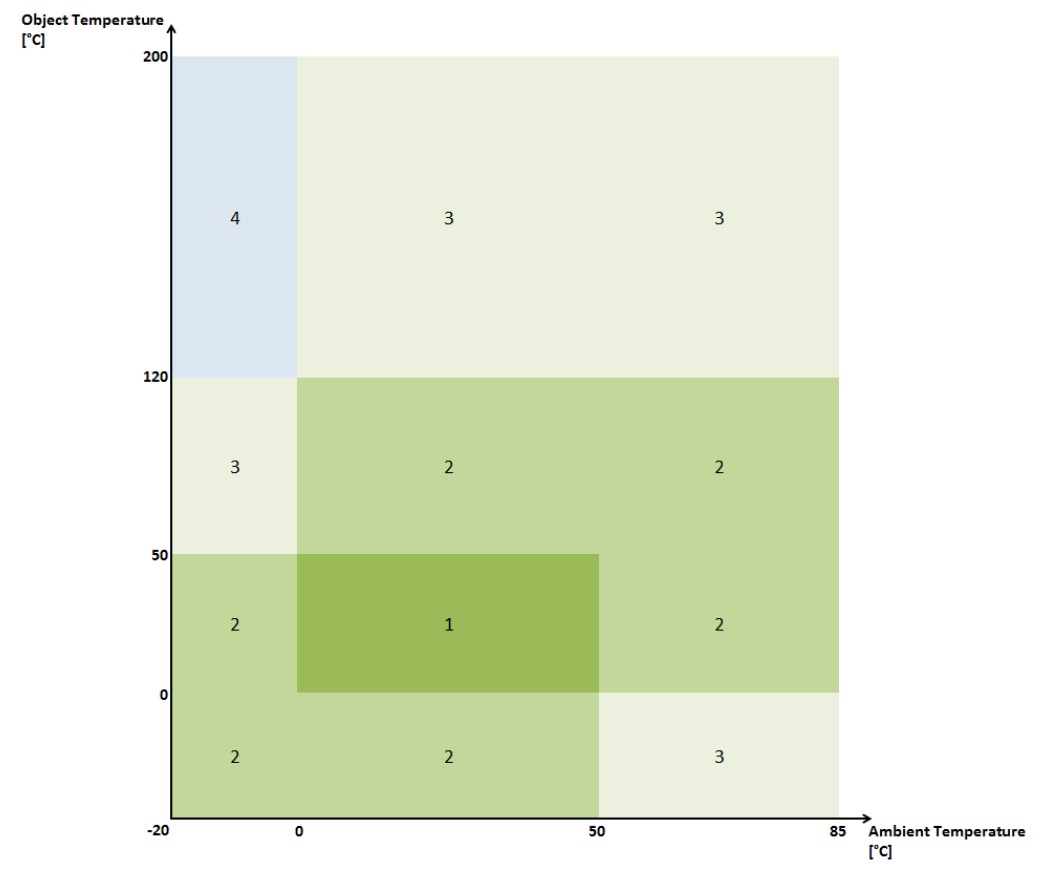

Accuracy of MLX90632:

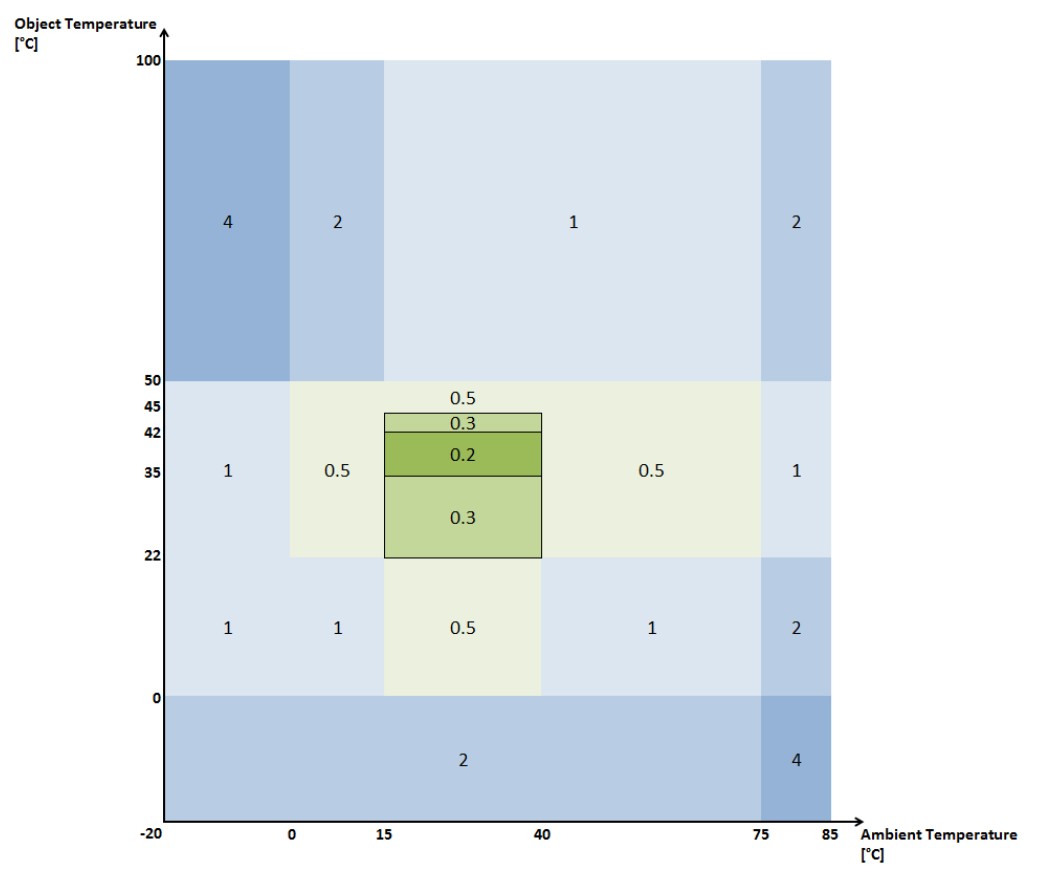

Accuracy of MLX90632 medical version:

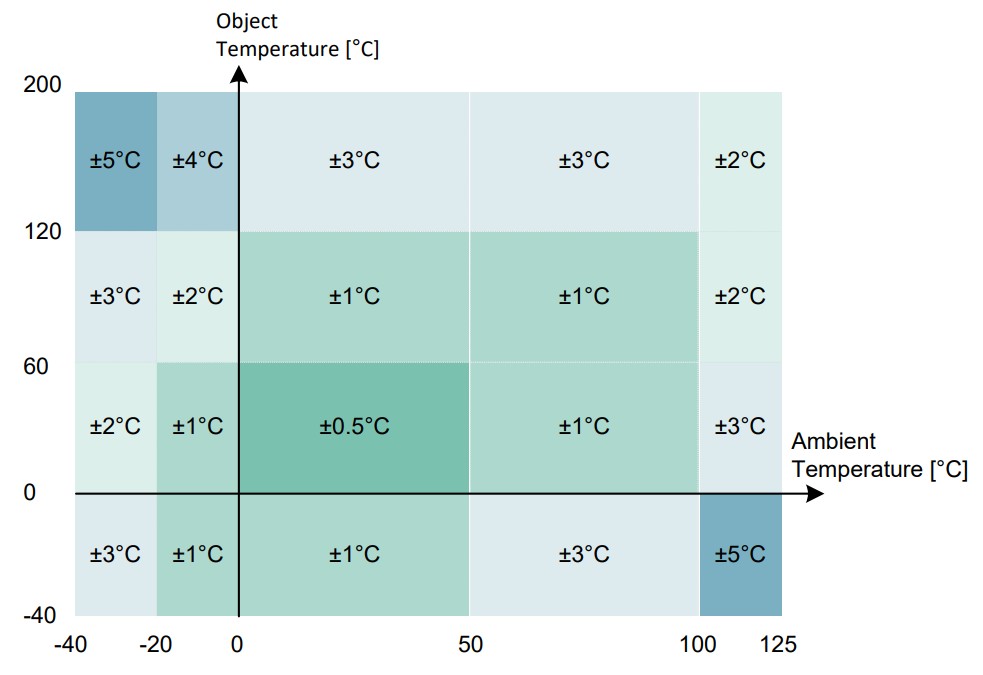

Accuracy of MLX90637:

Consult these datasheetes for latest information: MLX90614 , MLX90632 , MLX90637

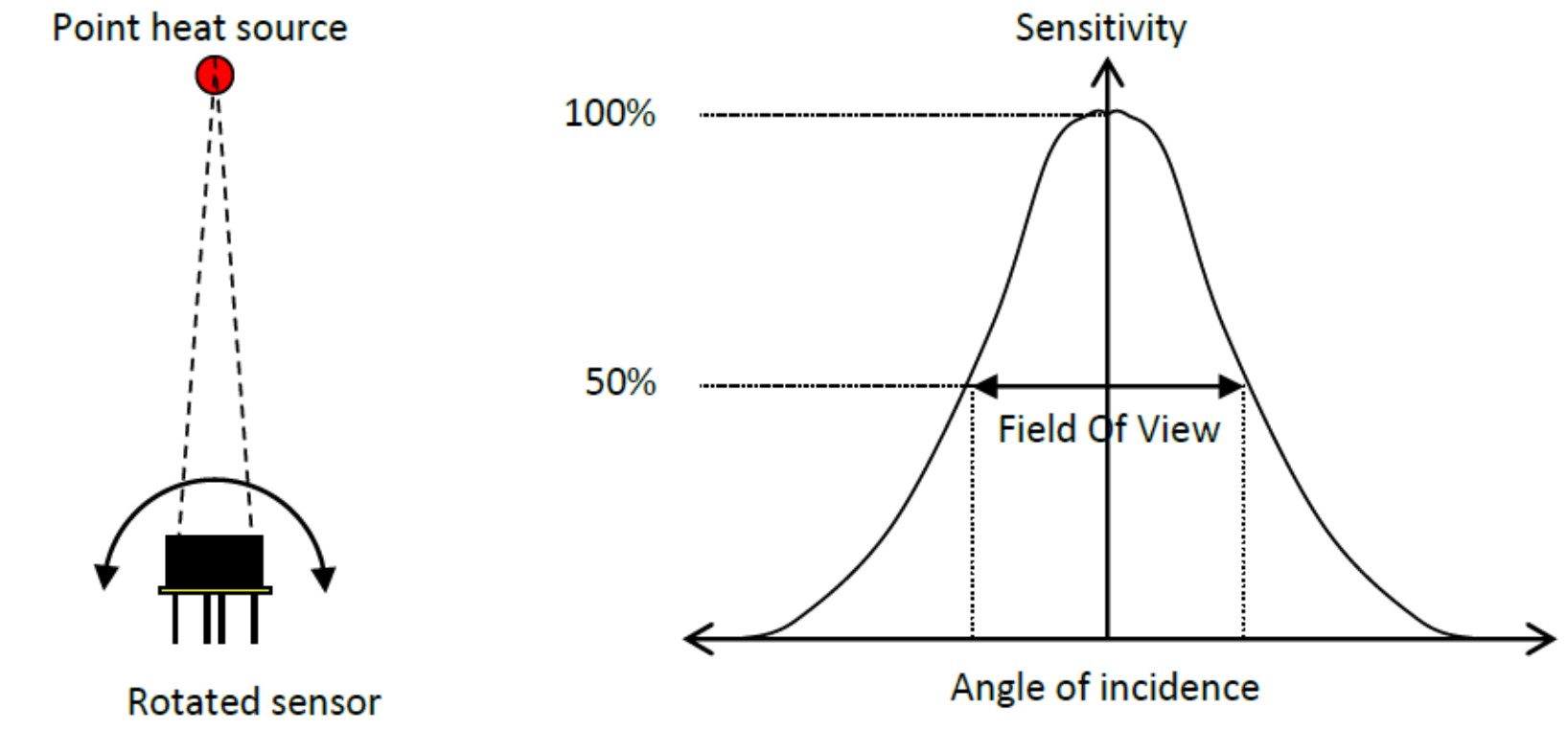

• Field of View (FOV): Angle at which sensor's sensitivity drops to 50% of the maximum. It is commonly used in the industry because it gives a first quick estimation of the viewing area, but in some circumstances it can be inaccurate because it takes into ccount only one point of the sensitivity curve.

  Defined by the sensor's optical design and lens. Wide FOV = large area, narrow FOV = precise spot.
• Distance-to-Spot Ratio (DS ratio): Indicates how large the viewing area is at a given distance. (e.g., 2:1 = 1cm spot at 2cm distance). Takes into account full sensitivity curve.
• FOV vs Accuracy: FOV-related temperature deviation is separate from overall accuracy. It reflects how object placement within the FOV can affect readings.

The Distance-to-Spot Studio simplifies the design and implementation of the single pixel Far Infrared temperature sensors (MLX90614, MLX90632, MLX90637).

The calculator enables customers to make the right decisions about the position of the sensor with respect to the size of the measured object.

All Melexis Temperature sensors have a determined DS ratio for precise measurements.

Visit these pages on the Melexis website: MLX90614 , MLX90632 , MLX90637

To evaluate the performance of the sensor use the EVB090614 , the EVB090632 , the EVB090637
